Author Topic: Tail rack  (Read 773 times)

twandre

  • Guest
Tail rack
« on: October 15, 2007, 04:21:05 PM »
I have a bare 65. Need to mount a removable box. Need a rack for that. What kind of racks are around.
Thom

Offline NC Steve

  • Mt. Olympus Resident
  • ****
  • Posts: 1484
Re: Tail rack
« Reply #1 on: October 15, 2007, 07:17:48 PM »
Yo Thom, hook up with Steve here, if you're riding an '81 thru '84.

http://suraklyn.com/yabb/YaBB.pl?num=1191877225

Pretty hard to beat the Reynolds racks for a BMW... ;)
'16 Triumph T100 Bonneville
'19 Royal Enfield Himalayan
82 R65-Blue II, 84 R65-Britta, 84 R65-Ol' Blue, 88 K75C, 99 R1100R
00 Guzzi Jackal, 89 Mille GT, 03 Cal Stone
07 Honda ST1300

thrang

  • Guest
Re: Tail rack
« Reply #2 on: October 15, 2007, 07:34:14 PM »
I like the krauser's on mine. The top box is big enough to hold a helmet, but you have to be careful not to overload it otherwise it makes the front end get very light and twitchy.

Offline Semper Gumby

  • Mt. Olympus Resident
  • ****
  • Posts: 2173
  • Dances with cow!
Re: Tail rack
« Reply #3 on: October 18, 2007, 07:34:59 AM »
I have th Krauser tail rack with the panniers mounted.  I have replaced the Krauser bags for a set of Givi E41 mounted on universal plates.  I also mounted another  universal plate on the the tail rack and have put an E52 top case (with brake lights) on it.  I had to reinforce the tail rack with two pieces of steel tubing to make a triangle.  The rack alone is not stong enough to support the E52 (or the E46 before it).  My weight distribution problem is solved by a Luftmeister fairing on the front.  That keeps it balanced out.  I'll get some pics.  Two keep the turn signals with the larger E41 panniers, I moved the turnsignal bar aft to the bottom of the tailrack universal plate.  The turn signals are connected with SAE quick connectors so its easy to take apart if needed.

If I was just going to have a top box then I would get the Reynolds and have a Givi universal plate and a Givi E46 or E52 (with Brake light - can't have too many brake lights!)  The Reynolds Racks come up on ebay or the IBMWR market place every now and then.

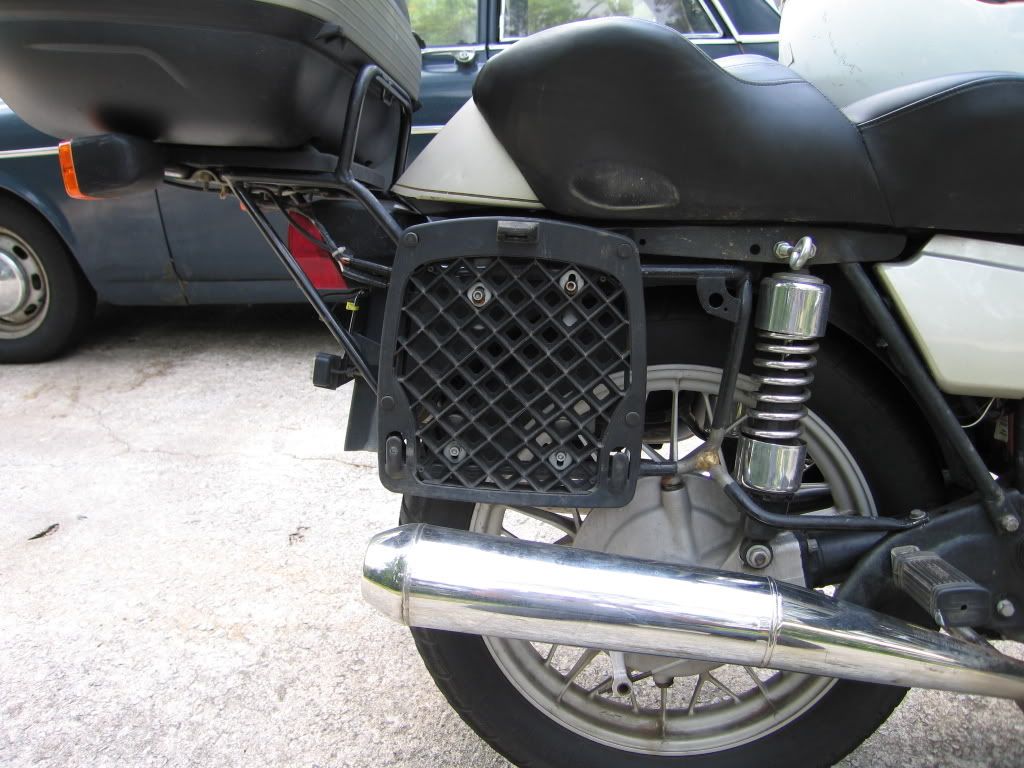

Here is a picture:

TTFN,
« Last Edit: October 18, 2007, 08:24:01 AM by Semper_Gumby »
Bill Gould ?1980/03 R65 When at first you don't succeed....Moo!
