Author Topic: Brake line removal assistance needed  (Read 1069 times)

Offline DeeG

  • Lives in Foothills of Mt. Olympus
  • **
  • Posts: 226
Brake line removal assistance needed
« on: June 10, 2016, 02:05:52 AM »
I've decided that the R45 is due for some serious maintenance. And since the brake lines are approaching 40 years old, they are going to be replaced. I picked up some pretty braided stainless brake lines (and new pipes) from Moto Bins. I don't feel I need to replace the distributor piece that lives behind the headlight, BUT!!  I can't seem to loosen up the brake line from it without doing some damage to the attach point of said distributor

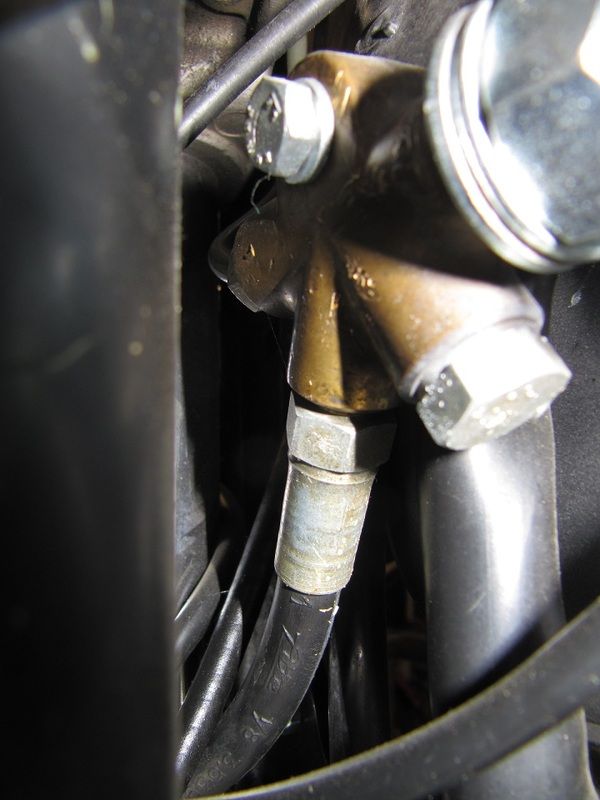

This piece:



When i put pressure on the brake line fitting, it pulls on the screw at the top and the whole thing twists. I've put some Kroil on the brake fitting, hopefully that might loosen it up a bit. Am I going to have to remove the distributor and have the better half clamp a pair of vise Grips on to it and hold it while I try to loosen it?  I really don't want to strip out those top threads.

Dee G
1978 R45/N ?
1978 R80 w/hack
1971 R75 (swb)

Offline marcmax

  • Mt. Olympus Resident
  • ****
  • Posts: 1122
  • Any day on two wheels is a good day
Re: Brake line removal assistance needed
« Reply #1 on: June 10, 2016, 05:53:43 AM »
I had the same problem when I replaced my brake lines. Since I was replacing all three lines anyway (LS) I ended up taking the old lines and distribution manifold off as one piece. Clamped it in a bench vise and at that point it was easy to remove the old lines.
Keep your bike in good repair: motorcycle boots are not comfortable for walking.

1982 R65ls    1984 R65ls

Offline DeeG

  • Lives in Foothills of Mt. Olympus
  • **
  • Posts: 226
Re: Brake line removal assistance needed
« Reply #2 on: June 10, 2016, 10:46:52 AM »
I suppose that would just be the easiest thing to do. I wasn't going to replace the top pipe, that's why I was trying to avoid removing the whole thing.

Thanks!
Dee G
1978 R45/N ?
1978 R80 w/hack
1971 R75 (swb)
