Author Topic: Front Engine Cover Oil ??  (Read 1154 times)

Offline Lucky_Lou

  • Mt. Olympus Resident
  • ****
  • Posts: 2699
  • shoot first
Front Engine Cover Oil ??
« on: February 10, 2010, 11:43:45 AM »
Ive started getting Gertie ready for the big ride next month to Wootton Bassett, i decided to tart her up a bit by fitting some stainless steel bolts to the engine cover.The road salt has taken its toll, when i pulled the old bolts out the bottom two (of 3)on the right looking from the front came out oily?.
 Any ideas what to expect when i pull it off to investigate (next week hopefully) ill be pulling it off to check the points anyway.
 I dont recall this being there when i did the rebuild just over 1000 miles ago
Lou
Ask questions later

Offline Bob_Roller

  • Global Moderator
  • Mt. Olympus Resident
  • *****
  • Posts: 9124
  • -7 hours GMT
Re: Front Engine Cover Oil ??
« Reply #1 on: February 10, 2010, 12:01:11 PM »
The o-ring on the ignition 'bean can', or the front main seal, would be my first and second guesses .

Possibility of a leak around one of the timing cover bolts, loose bolt, or gasket gone bad .
« Last Edit: February 10, 2010, 12:03:56 PM by Bob_Roller »
'81 R65
'82 R65 LS
'84 R65 LS
'87 Moto Guzzi V65 Lario
'02 R1150R
Riding all year long since 1993 .
I'll give up my R65, when they pry my cold dead hands from the handlebars !!!!!

Crossrodes

  • Guest
Re: Front Engine Cover Oil ??
« Reply #2 on: February 10, 2010, 12:03:11 PM »
The O-ring (seal on some models) on the bean can would be my guess also.

Offline Barry

  • Mt. Olympus Resident
  • ****
  • Posts: 5145
Re: Front Engine Cover Oil ??
« Reply #3 on: February 10, 2010, 01:11:11 PM »
Hope its nice and simple like the Bean can spigot O ring. It's also possible for oil to get inside the bean can through the drive shaft mechanical seal and then drip out of the front cover.
Barry Cheshire, England 79 R45

Offline Lucky_Lou

  • Mt. Olympus Resident
  • ****
  • Posts: 2699
  • shoot first
Re: Front Engine Cover Oil ??
« Reply #4 on: February 10, 2010, 01:37:18 PM »
Ill post some pics next week when i get chance to have a closer look thanks for the tips.
Lou
Ask questions later

Offline Lucky_Lou

  • Mt. Olympus Resident
  • ****
  • Posts: 2699
  • shoot first
Re: Front Engine Cover Oil ??
« Reply #5 on: February 13, 2010, 01:57:04 PM »
Stupid is.....the bottom two bolts are in the timing chain cover not the front engine cover...Dooh theres slight discoloration on the engine case from oil but no visible leaks  phew
Lou
Ask questions later

Offline montmil

  • Mt. Olympus Resident
  • ****
  • Posts: 8371
Re: Front Engine Cover Oil ??
« Reply #6 on: February 13, 2010, 04:56:33 PM »

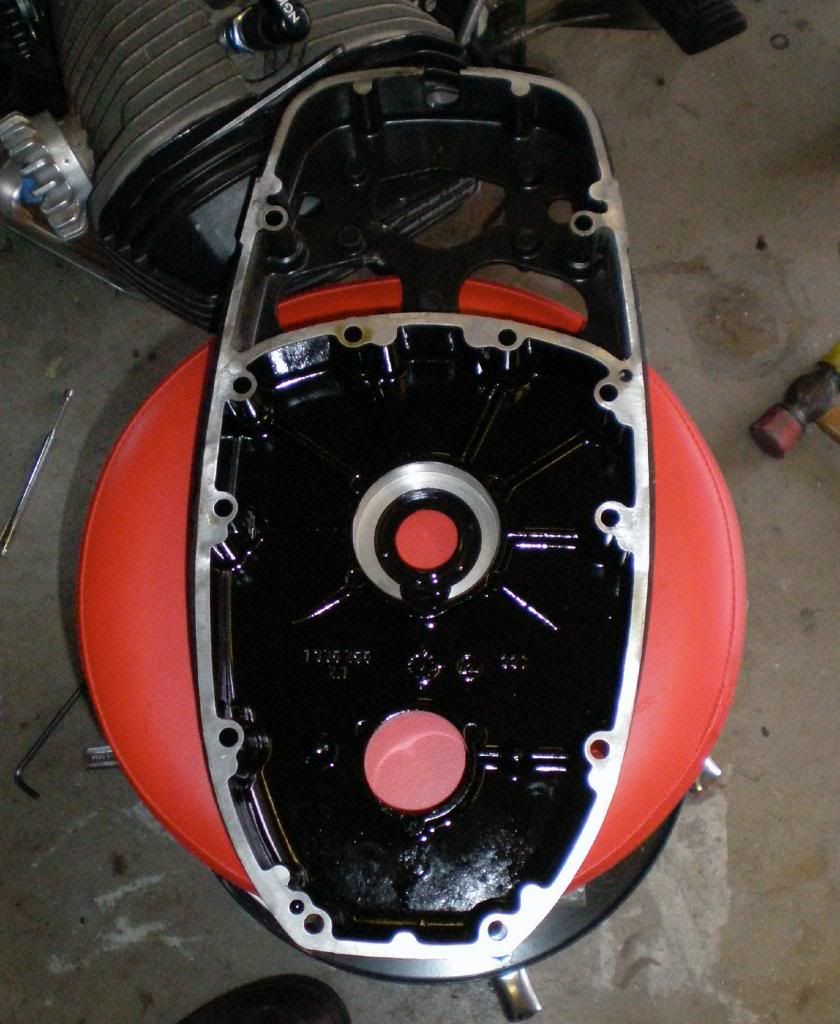

There is a 28x47x7 oil seal in the Timing case Cover for the crankshaft ball bearing. Getting to it is a real PITA. I would expect a larger amount of oil with a seal failure. Hope it the bean can O-ring...   Monte

Monte Miller
Denton, TEXAS
1978 BMW R100S
1981 BMW R65
1983 BMW R65
1995 Triumph Trophy
1986 VW Cabriolet
