Author Topic: Powdercoating, DIY  (Read 2027 times)

AlfromNH

  • Guest
Powdercoating, DIY
« on: January 10, 2014, 07:46:30 AM »

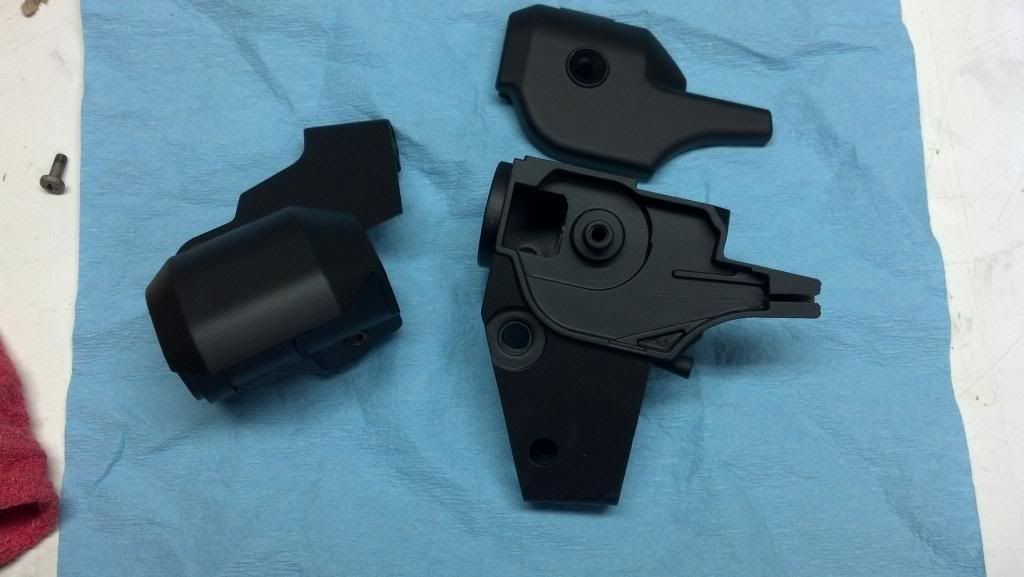

The community workshop "hackerspace" I belong to has the means for powdercoating. I took a short class that demonstrated the process, and yesterday took my control perches in. I stripped them with coal slag in the media blaster, then powder coated them. They came out really nice!

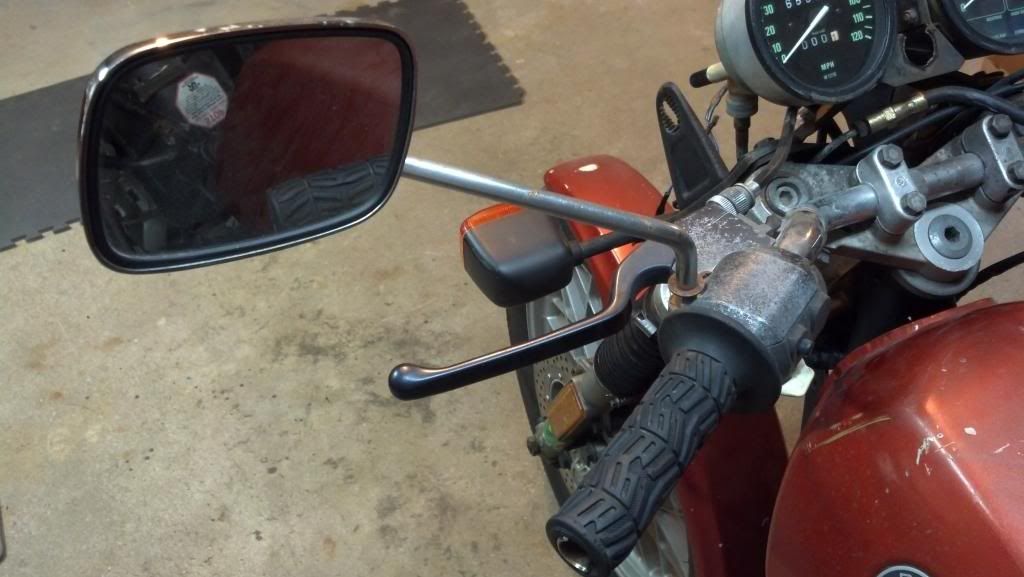

I didn't take any "before" pictures, but here's the same clutch perch on the bike as I bought it:
« Last Edit: January 10, 2014, 07:48:50 AM by AlfromNH »

Offline Barry

  • Mt. Olympus Resident
  • ****
  • Posts: 5071
Re: Powdercoating, DIY
« Reply #1 on: January 10, 2014, 08:54:38 AM »
Nice job.

That sounds like a useful facility.


A long time ago I had a go at powder coating at work and I guess it could be done on a small scale at home. All you need is an old oven and the electrostatic coating gun. I can't remember whether it was the powder that got the charge or the work piece only that a static charge was involved in attracting the powder to the work.
« Last Edit: January 10, 2014, 09:04:46 AM by bhodgson »
Barry Cheshire, England 79 R45

AlfromNH

  • Guest
Re: Powdercoating, DIY
« Reply #2 on: January 10, 2014, 10:02:26 AM »
The gun is charged, and the workpiece is grounded, so the powder is attracted to the work piece. After you coat it, you bake it for 20 minutes and it's done.

I coated the throttle perch, then realized I forgot to mask the threaded holes. Since I hadn't baked the part, I simply blew the powder off it, masked the holes, and re-sprayed.

It's a very cool process, now I'm looking for more parts to treat...   :D

Offline Rob Valdez 79 R65

  • Newbie
  • *
  • Posts: 98
  • I Love YaBB 2!
Re: Powdercoating, DIY
« Reply #3 on: January 10, 2014, 07:28:36 PM »
Dismantle that starter and do it!  (kidding - although the starter could probably use a refurb)

That is a very neat facility you have!  Classes too!  That is something worth living for.

Offline montmil

  • Mt. Olympus Resident
  • ****
  • Posts: 8371
Re: Powdercoating, DIY
« Reply #4 on: January 11, 2014, 05:43:39 AM »
These days, even Harbor Freight offers complete DIY powder coating equipment and a selection of basic colors.
Monte Miller
Denton, TEXAS
1978 BMW R100S
1981 BMW R65
1983 BMW R65
1995 Triumph Trophy
1986 VW Cabriolet

AlfromNH

  • Guest
Re: Powdercoating, DIY
« Reply #5 on: January 11, 2014, 07:48:47 AM »
The gun I used is from Eastman, but the powder is from HF.

I'm wondering how to "refresh" the plastic switch housings...

Offline Luca

  • Newbie
  • *
  • Posts: 27
  • Taking my time as quick as I can
Re: Powdercoating, DIY
« Reply #6 on: January 17, 2014, 02:26:58 PM »
Mother's "Back to Black" does a pretty good job at cleaning up old, faded plastic.

Not sure if it would work on plastic, but gently wiping rubber parts with power steering fluid will freshen them up.

Oh yeah, and the perches look great!
'82 R65LS
'01 K1200RS

AlfromNH

  • Guest
Re: Powdercoating, DIY
« Reply #7 on: January 17, 2014, 03:41:12 PM »
Thanks, I'll check out the Mother's stuff

Offline suecanada

  • Mt. Olympus Resident
  • ****
  • Posts: 1453
  • Winter time now so we sleep and dream and plan!!
Re: Powdercoating, DIY
« Reply #8 on: March 15, 2014, 11:46:09 AM »
Saw a review of "Wipe New" As-Seen-on-TV product and the motorcycle owner was really pleased with the renewal powers it gave...I remember now...the review was in the BMW ON News magazine. I see that Giant Tiger here has Wipe New and I'm going to try it on all the oxidized parts on both van and bikes.
1983 R65LS - LRB still my favourite!? 1988 Honda NX250, "Toodles Too" and a Suzuki DR650, "Calypso." All stored in the "Brrrmmm Closet".
