GEN Light Auxiliary Circuit
« on: January 16, 2013, 12:28:10 PM »
Maintaining the GEN lamp is critical in keeping your BMW Airhead's battery charging. In the rare instances should a GEN warning bulb fail, that little bulb's filament will knock out the exciter circuit of the Airhead charging circuit. Bad bulb. No charge.

Here's how to build and install a solid-state alternator back-up for less than two bucks:

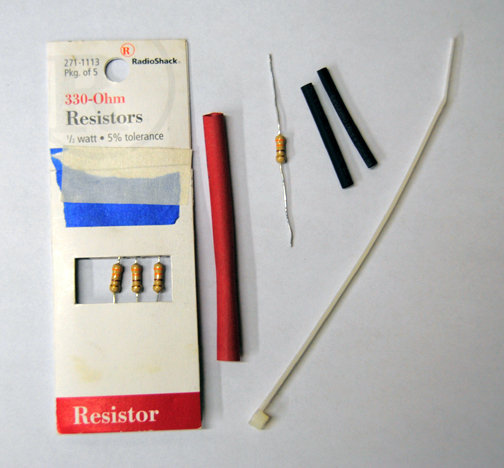

Available at Radio Shack, pick up a five-pack of 330 Ohm, 1/2 watt resistors for just over a buck. A bit of wire, shrink tubing and a zip tie completes the shopping list.


Show more

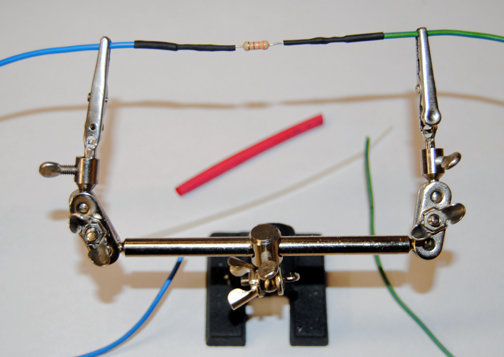

Solder a wire to each end of the resistor leads. I used about one foot each of blue and green/blue as this is the color of the bike's wires you'll tap into. Use a heat sink clip on the resistor leads to protect the resistor from overheating. Cover the soldered joints with small diameter shrink tubing.


Show more

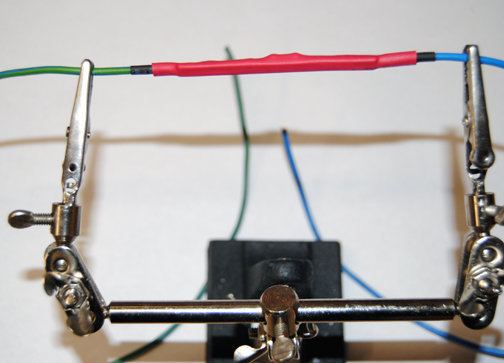

Finally, trim down the zip tie and insert it into the larger diameter shrink tubing. The zip tie stiffener will prevent any potentially damaging flexing of the resistor leads.


Show more

The install is quite simple: The green/blue wire attaches to the green/blue wire terminal on the ignition coil. Attach the blue wire to the blue wire found in that big, white nylon connector block under the fuel tank. That's it. I always feel better if I detach the negative battery cable when ever I'm doing any kind of wiring chores on my Airheads. This circuit is suitable for 1977-95 model Airhead BMWs.
Monte Miller
Denton, TEXAS
1978 BMW R100S
1981 BMW R65
1983 BMW R65
1995 Triumph Trophy
1986 VW Cabriolet

Offline Adrian

  • Lives at Base of Mt. Olympus
  • ***
  • Posts: 518
  • The Old Hairy Biker Sez...
Re: GEN Light Auxiliary Circuit
« Reply #1 on: March 25, 2018, 06:16:36 PM »
Hi there - I just wanted to check with you about this circuit. I'm assuming that this is used as well as a light. I have changed to an Acewell speedo/rev counter and fitted a seperate gen light. I would still like to fit this as well - thanks for your advice.....
1984 R65 (860)

Offline marcmax

  • Mt. Olympus Resident
  • ****
  • Posts: 1122
  • Any day on two wheels is a good day
Re: GEN Light Auxiliary Circuit
« Reply #2 on: March 25, 2018, 07:45:19 PM »
Hi Adrian,
I fitted an Acewell speedo and a small LED for a GEN light. The LED didn't have enough resistance so I added this mod and have not missed a lick. It has been in place for 4 years now and working perfectly. I did add it to my printed copy of the wiring diagram so I wouldn't forget it is there.
Keep your bike in good repair: motorcycle boots are not comfortable for walking.

1982 R65ls    1984 R65ls

Offline Adrian

  • Lives at Base of Mt. Olympus
  • ***
  • Posts: 518
  • The Old Hairy Biker Sez...
Re: GEN Light Auxiliary Circuit
« Reply #3 on: March 25, 2018, 10:42:31 PM »
That's great & thanks marcmax [ch128521]
1984 R65 (860)

Offline Adrian

  • Lives at Base of Mt. Olympus
  • ***
  • Posts: 518
  • The Old Hairy Biker Sez...
Re: GEN Light Auxiliary Circuit
« Reply #4 on: March 30, 2018, 11:34:45 PM »
Hi again - hopefully the final question - I just wanted to check about the blue wire connection. I don't want to be messing with the 2 wire white connector under the tank - so I plan to connect to the blue wire on the back of the diode board.
.
As it's the same wire I assume this is okay - reassurance is needed :-)
.
It's an R65 1984 model - European spec ......
.
The surprise for me - was the connection of the resistor. I'm not an electrician but as the gen lamp is connected to the ignition lock (green/black? wire) and the blue wire from the old rev counter plug (I used electrical pins to connect the Acewell to this plug) - I had assumed that the resistor should be connected the same.
.
I trust that this connection for the resistor must work - but could you explain why it has a different connection to the gen lamp.
.
Thanks .......
« Last Edit: March 31, 2018, 12:15:35 AM by Adrian »
1984 R65 (860)

Offline adam_jepsen

  • Newbie
  • *
  • Posts: 8
  • I Love YaBB 2!
Re: GEN Light Auxiliary Circuit
« Reply #5 on: January 08, 2020, 09:04:24 AM »
Hi I have two questions... I have been reading snowbums writeup on this topic and near the end he mentions using a higher wattage resistor to more closely mimic the charge circut produced by a lamp, have you found any negative using the lower watt resistor described in your post?

Secondly, do you have a picture of the resistor installed? The article from snowbum says to connect to an unused male spade connector at the "terminal" of the ignition coil, and the other side to a blue wire coming out of the voltage regulator plug. If I could "see" this or your install I think I would be able to duplicate.

Currently I run an LED and rev the (warm) engine to start the charge... I know this is not a great way to accomplis the task

Offline skippyc

  • Lives in Foothills of Mt. Olympus
  • **
  • Posts: 351
  • Shouldn't have sold them old bikes.
Re: GEN Light Auxiliary Circuit
« Reply #6 on: January 08, 2020, 10:10:16 PM »
Doing the calculation.5W is a little to small but not being used much shouldn’t be a problem
